Application
Description
High-strength frame, large steel plate links on the side, higher stability of the whole machine, can realize kilometer paper shaft, reduce the frequency of medium replacement, and greatly save time and manpower.

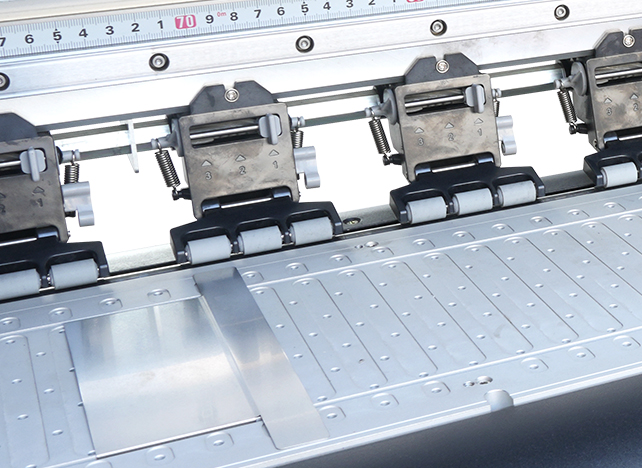

Three-speed adjustable paper pressing wheel

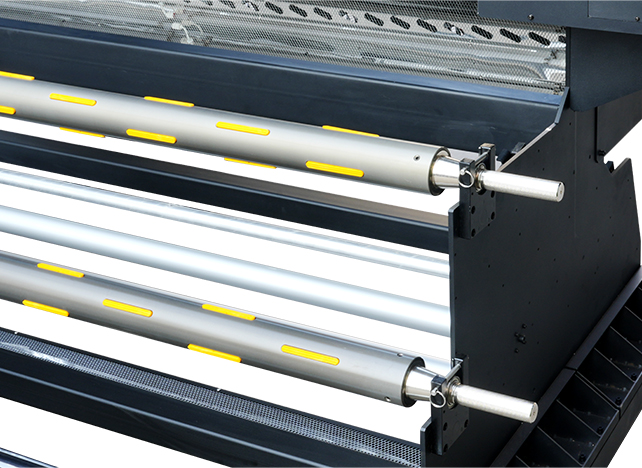

Printer retractable device

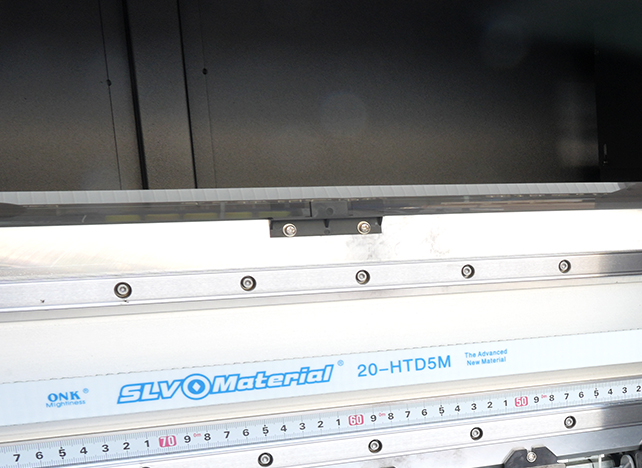

Dual guide rails

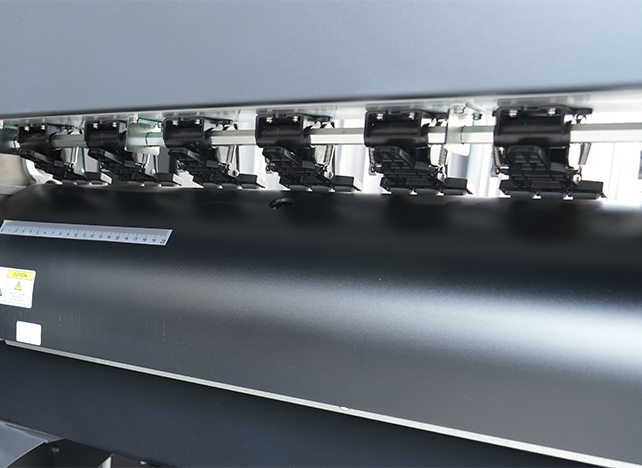

Paper detector

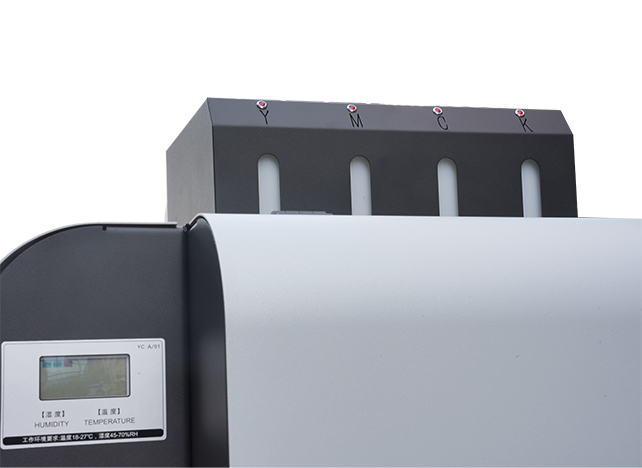

Large ink cartridges

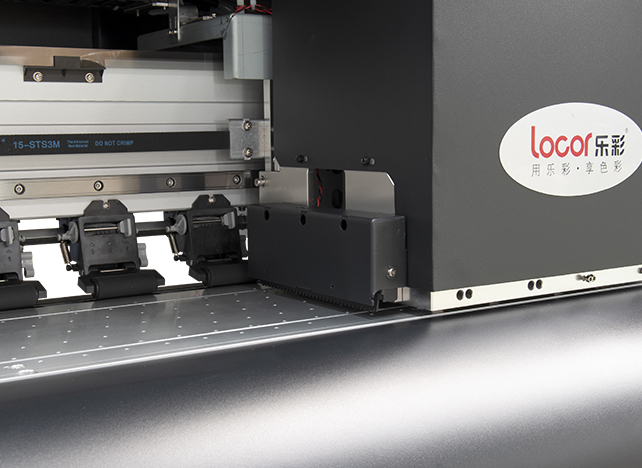

Anti-collision sprinkler
Specifications
| Product Model | LC-1808A | LC-1804A |
| Printhead Type | Epson 13200-A1 | Epsoni3200-A1 |
| Number of Printhead | 8 | 4 |
| Printhead Height | 2-3mm | |
| Printhead Cleaning | Fully automatic ceaning with anti-clogging,flash spraying, and automatic molsturizing functions | |
| Ink Type | Dye-sublimation ink | |
| Ink Color | Four colors(C/M/Y/K) | |
| Ink Cartridge Capacity | 5000ml per color | |
| Ink Supply Method | Neg ative pressure continuous ink supply system | |
| Printing Width | 1820mm | |
| Media | Heat transfer paper | |
| Maximum Roll Weight | Kilometer paper weight(optional) | |
| Take-up Device | Air shaft automatic winding and un winding system | |
| Heating System | Three-Stage Embedded Constant Temperature Heating System (Front, Middle,Rear) | |
| External Drying Configuration | Dual infrared heating with external drying fan | |
| Operation Language | Chinese/English | |
| Computer System | Win11/Win10 | |
| Operating Environment | Temperature range 18C-25C; Humidity range 35%-65% Rh | |
| Printing Interface | USB | |
| RIP Software | Maintop/Photoprint/Wasatch | |
| Power Parameters | AC-220V 50Hz/60HZ | |
| Power(W) | Standby power 64W, maximum power 6000W | |
| Nolse Level | Standby<32dB,operating s65dB | |
| Machine Dimensions | 3500*1300*1750mm(L*W*H) | |
| Machine Net Weight | 750 Kg | |
| Package Dimensions | 3550*1250*1810mm(L*W*H) | |
