Application
Description
A UV DTF (Direct-to-Film) printer is a hybrid printing technology that combines aspects of UV printing and DTF (Direct-to-Film) processes to create high-quality, durable, and versatile transfers for various substrates.
Details

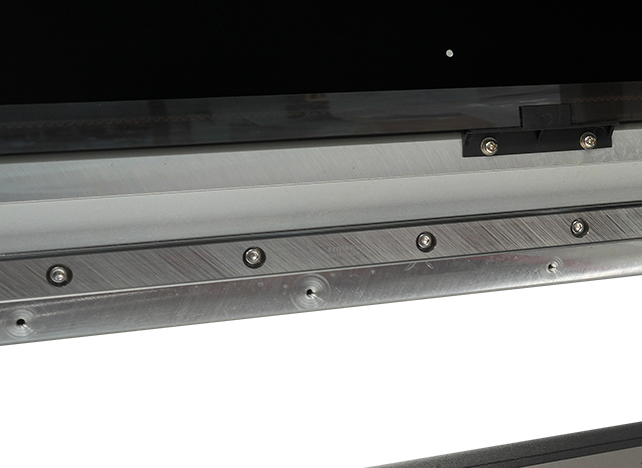

guide rail
Details

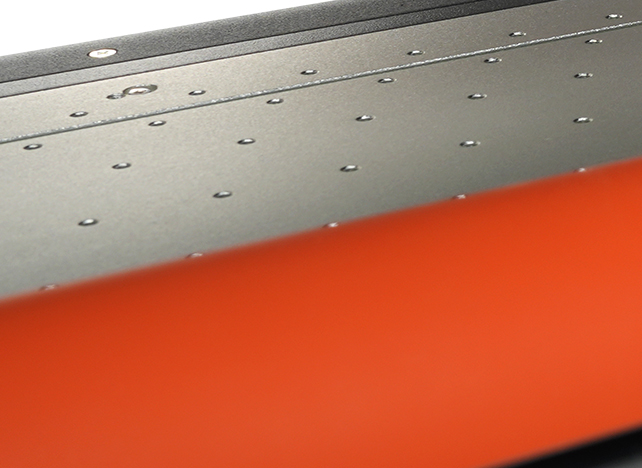

platform
Details

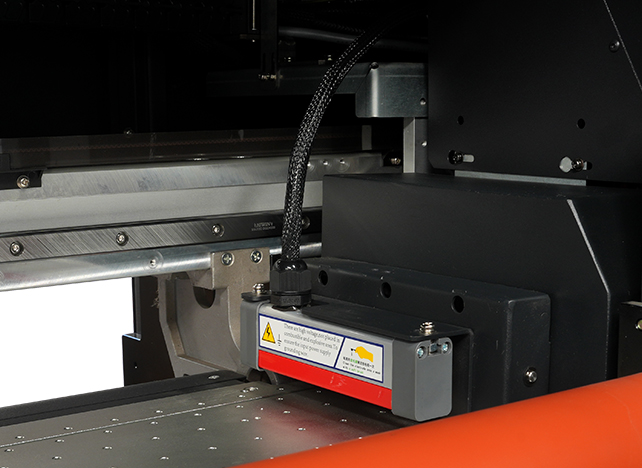

Static eliminator + nozzle anti-collision
Details

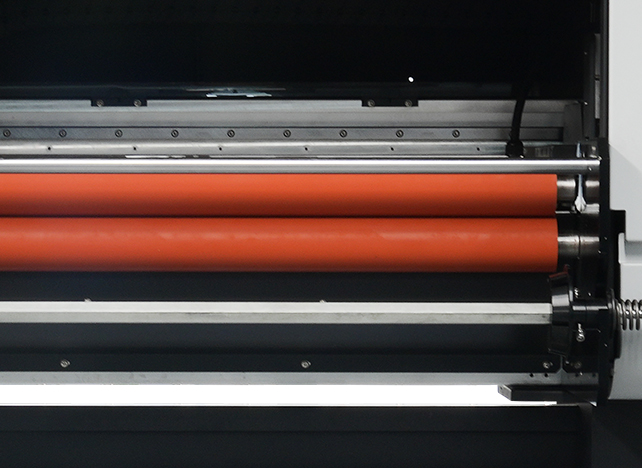

uv dtf rubber roller
Specifications
| Model | LC-704U | ||
| Printhead Type | 13200-U1 | ||
| Printhead Number | 4 pcs | ||
| Printing Width | 650mm | ||
| Speed | Sketch mode 13㎡/h | Production mode 8.2㎡/h | Quality mode 6.4㎡/h |
| Print head spray | Anti-blocking flash spray and automatic moisturizing | ||
| Ink type | UV DTF ink | ||
| Ink Color | Glue+White+CMYK+Varnish+ Gilding Varnish | ||
| Cartridge capacity | 1500ml/color | ||
| Ink Drying System | UV LED light+ UV water box | ||
| Laminating Rubber Roller | High temperature, support hot stamping | ||
| Laminater Pneumatic Lift | Bilateral cylinder | ||
| Laminator Moving Rod | Control the balance of lamination and paper feeding | ||
| Material Thickness | 1-3mm | ||
| Printing Media | UV DTF film, UV DTF sticker | ||
| Loadable coil weight | 40kg(below) | ||
| Taking Up Device | Front product film take-up device + rear protective film take-up device | ||
| Feeding Device | Standard | ||
| Operating system | Win11/Win 10 | ||
| Operating language | English/Chinese | ||
| Working environment | Temperature range:18℃~25 ℃; Humidity range: 35%~65%Rh | ||
| Print interface | USB | ||
| RIP software | Maintop | ||
| Power(W) | Standby:32W, Max: 1200W | ||
| Machine Dimension | 1480mm x 730mm x 1475mm (LxWxH) | ||
| Weight | 160 Kg | ||
